因為在工作上遇到影像對位的問題，此演算法可以很好的解決（雖然不是100%解決）所以特別將此演算法紀錄下來。這也是我第一次將paper 的演算法用code 從0開始完成實踐。演算法是參考這篇paper "New algorithms for 2d and 3d point matching:: pose estimation and correspondence"
1.問題描述
Network switch (Fig.1)代工廠在機台出場前，要將機台上的燈號全數打開做檢測，因為燈太多，用人眼檢測有困難，所以想用影像自動檢測。檢測的目標很單純：確認每個燈號的亮度、顏色是否異常 （燈不亮、顏色異常）。而我的演算法主要分成1）前處理：標出每個燈號亮點在圖上的位置. 2）對位：找出亮光與機台燈的對應關係（該亮點屬於機台上哪個燈號）。前處理沒什麼困難，只要機台正面沒有反光，用threshold就能將燈號凸顯出來（Fig.2)。但對位就沒這麼容易
 |
| Fig.1 Network Switch |
 |

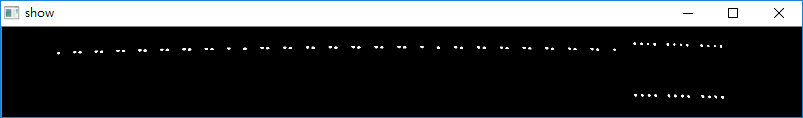

| Fig.2 前處理threshold 後，亮燈凸顯出來 |
2.為何需要對位？
如果每次前處理的圖都像Fig.2 這麼完美，沒有燈是不亮的（簡稱Off)，也沒有其他不是燈號的光被抓出來（之後簡稱漏光），那其實只要把每個亮點從上往下，從左往右照順序排，就可以知道應該對應機台上哪個位置的燈號。但實際情況會有燈故障（不然幹嘛要檢測）或者會有一些漏光必須排除，只要一發生就無法對位，所以最直接的方法是：將一個golden image (沒有Off 或漏光) 去跟檢測時的亮點作對位，位置最靠近哪個golden 亮點就標記為哪個燈號。
3.困難點在哪？
要兩張圖golden 跟 檢測（以後稱test)作對位，因為記錄golden 時其機台位置不可能剛好跟test時的機台位置完全相同，會有些許差異，像是1）位置差異 2）與camera 距離差異 3）擺放角度差異。反應在camera 2D影像上就有 平移（translation)、scaling、rotation、projection(1-point） 的差異。如下圖所示（平移好理解，就不表示了）
Camera距離差異造成image的縮放差異（scaling)，不同方向的旋轉就產生rotation 跟 projection 的差異，所以單純將golden 跟test image 疊在一起，燈位置是不可能對在一起的，所以才用了point matching 演算法，自動修正golden test 的影像差異，得到燈號的對應關係。
4.Point matching Algorithm
此演算法可以將兩組Point set {X} {Y} 之間的 1）空間差異找出 2）同時將XY之間每個點的對應找出來，X point set 的每個點最多只能對應一個Y Point，反之一個Y Point 最多只能對應一個X Point。其作法是用一個Cost function 來量化XY point set之間matching 的程度，matching 的愈好function 愈小，matching愈差funciton 值愈大。然後最佳化Cost Function （找出最小值時的參數）。
4.1 Cost Function 組成
Cost Function組成為Two Point set {Xj} {Yk}，空間差異修正 {A, t , fp}，對應關係的matching matrix {mjk}:
J K is the number of points in the point set X and Y
t 是translation 修正. A包含了Scaling and rotation 修正，由 {a, theta} 參數組合（paper 中 shear transform 我用不到，所以沒列）
,
fp 是project 修正，這是paper 上沒有的
p 是projection 參數. Ykx : x component of the k-th point of point set Y
這邊我只修正了x 方向上 projection 造成的差異，因為我的case points x 方向分佈範圍的遠比y方向大，所以修正x方向即可，如果其他case y 方向也需要修正，分母須再加上和外參數乘上y component of point。
.* 是element-wise 乘法
matching matrix element mjk 其實際意義是 j-th point in X 跟 k-th point in Y 之間相關性的機率，必須有以下限制
,
,
g(A) 是regularization term，讓參數 a , p 不會過大
4.2 The Softassign
這個演算法最大的重點是matching matrix的決定，如上一段講到最終目標是a）matrix 的每一個element 不是0 就是1，b)且每個row 或 column 的合小於等於1。但如果一開始matching 時，matrix 的element 就只有0跟1兩個選擇，只要一開始有matching 錯誤產生，就沒有修正回來的可能。而Softassign 是讓matrix element 可以介於0~1之間，讓matching 變成連續性的，這樣matrix 決定過程中才更有彈性。
4.2.1 簡化問題，不考慮outlier 的存在，且J=K。
假設現在只看{Y}其中一個點，要對應到{X}裡距離最近的點，點跟點的間距為Qj，matching matrix 為mj，但要滿足∑mj = 1 條件。我們的目標是：
這是softmax function，可以確保mj 都是正數且總和為1，當Qj 愈小mj就愈接近1。
這邊的β用處是當其愈大，最小值Qj 對應的mj 會愈近於1，其他會愈近於0 。這在我們的演算法很重要，當一開始matching 混屯未明時，β設定較小，讓matching 的自由度較大，然後β隨著matching 的進行讓其越來越大，到matching 完成時，matching matrix 就會達到我們的目標，這個方法叫作deterministic annealing method。
現在更進一步，不只找一個點，而是point set {X}{Y} 中每個點的matching。mjk ∈{0,1} 且須滿足∀j ∑kmjk = 1 and ∀k ∑j mjk = 1。目標是要找下面式子的最小值時的mjk
方法跟{X}只有一點的情況有點不同，因為現在matrix 的每一個 row 跟 column 都要滿足總和為1，不能單純用一個softmax function 達到。必須先將mjk = exp(-β*Qjk)，然後對row 跟 column 反覆normalize，直到matrix 中每一個element 都收斂。
我們可以看的上面E function 其實跟我們的Cost function 的型式很像，cost function 為
現在我們把outlier 以及{X}{Y} 的點數不同的情況考慮進來。這情況下mjk的限制條件為不等式：∀j ∑kmjk ≤1 and ∀k ∑j mjk ≤ 1 ，但softassign必須再等式下才能對row column 進行normalize ，matrix每個row 跟column 必須多加一個slack term element讓不等式就變成等式：
下面範例是一個2*3 matching matrix normalize 前後的樣子。Slack term 起始用1是有意義的。mjk = exp(-β*Qjk) 後，如果某個 row 或 column 全部的element 都小於slack term，經過normalize 後全部都會接近0，也就是找不到對應點，也就是outlier。那slack term 定成1的話 ，只要距離大於α 的兩點，其 Qjk > 0 ，然後 mjk < 1 也就是小於slack，就會被當成outlier，因此α就是outlier threshold 原因就在此
 |
| j=2 就是所謂的outlier |
4.3 Algorithm step by step
下面將演算法每一步驟列出來
Initialize ：θ, t, a and p to zero, β to β0, mjk slack term to 1, γ to γ0
Begin A: Do A until (β ≥ βf)
Begin B: Do B until θ, t, a and p converge or number of iterations > I0
Begin C : update matching matrix by softassign
Initialize ：θ, t, a and p to zero, β to β0, mjk slack term to 1, γ to γ0
Begin A: Do A until (β ≥ βf)
Begin B: Do B until θ, t, a and p converge or number of iterations > I0
Begin C : update matching matrix by softassign
mjk = exp(-β*Qjk)
Begin D : Do untial m converge or number of iterations > I1
Update m by normalizing across all rows and columns
End D
End C
Begin E: update θ, t, a and p by coordinate descent
update θ using analytical solution
update t using analytical solution
update a using Newton`s method
update p using Newton`s method
End E
End B
β = βr*β, γ = γ/βr
End A
與paper 不太一樣的是 Qjk 在paper 裡的計算跟我寫的有正負差異，因為我把負號寫在了exp() 裡了，所以最後結果跟paper 一樣。
θ 的update equations paper 裡給的有錯誤，正確的equation 如下:
paper 裡的分母+-號搞錯。這邊W = s(a)*Yk 。index 1,2 分別代表座標 x,y。
我的hyper-parameter 設定為 β0 = 0.00009, βr =1.05, βf = 0.1, γ0 = 100, α = 200, I0 = 100, I1 = 30. 這些是實驗結果試出最好的參數，其中最重要的是β0，設的太小自由度太高pose parameter 會跑掉，設的太大自由度太低pose parameter 無法變動太多導致沒有matching 效果。次重要的是βr 跟 βf，βr 在不影響結果下可以設大一點減少Step A 的iteration 次數來加快matching速度。βf 也一樣可以設小一點來加快速度，雖然小的βf 會讓matching 的mjk < 1 ，但只要設個threshold就行了，例如設0.6 為threshold ，只要mjk > 0.6 就設成1就行。γ對實驗結果沒什麼影響，可能是因為cost function 裡點間距貢獻要遠大於 γ regularized term 的貢獻吧。
Begin D : Do untial m converge or number of iterations > I1
Update m by normalizing across all rows and columns
End D
End C
Begin E: update θ, t, a and p by coordinate descent
update θ using analytical solution
update t using analytical solution
update a using Newton`s method
update p using Newton`s method
End E
End B
β = βr*β, γ = γ/βr
End A
與paper 不太一樣的是 Qjk 在paper 裡的計算跟我寫的有正負差異，因為我把負號寫在了exp() 裡了，所以最後結果跟paper 一樣。
θ 的update equations paper 裡給的有錯誤，正確的equation 如下:
我的hyper-parameter 設定為 β0 = 0.00009, βr =1.05, βf = 0.1, γ0 = 100, α = 200, I0 = 100, I1 = 30. 這些是實驗結果試出最好的參數，其中最重要的是β0，設的太小自由度太高pose parameter 會跑掉，設的太大自由度太低pose parameter 無法變動太多導致沒有matching 效果。次重要的是βr 跟 βf，βr 在不影響結果下可以設大一點減少Step A 的iteration 次數來加快matching速度。βf 也一樣可以設小一點來加快速度，雖然小的βf 會讓matching 的mjk < 1 ，但只要設個threshold就行了，例如設0.6 為threshold ，只要mjk > 0.6 就設成1就行。γ對實驗結果沒什麼影響，可能是因為cost function 裡點間距貢獻要遠大於 γ regularized term 的貢獻吧。
5. Result
藍色為golden LED point，紅色為test 時的亮點。matching 後golden 完美的跟test 重疊，沒有重疊到的紅色點位就是漏光。所以此演算法可以很好的將兩個point set 自動去對位，不論是有outlier 或是有漏點，都不受影響。
 |
| matching 前 |
 |
| matching 後 |
6. 例外情況
此演算法雖然有效，但也不是萬能的，有些特殊狀況會造成對位失敗
6.1 對位前跟太多錯誤的點距離太近
例子如下，matching 前藍色點整個往右shift，剛好point set 是左右長狀分佈，所以跟很多不該對到位的點距離太近，導致跑演算法時被這些錯誤的對應關係（本該為0的mjk 太大）限制住而找不到最適合的 {θ, t, a, p}。解決辦法是先將兩point set 的平均位置移到相同處，再開始matching。
 |
| matching 前 |
 |
| matching 後 |
6.2 頭或尾缺點
這是我這種左右長條分佈會遇到的問題，如果左邊開頭有缺點，matching 時 a, p 會調過度讓兩point set 最左邊的點去對齊，反而讓中間的點沒對到，而被誤認是outlier。我認為原因是因為outlier 的數量不會被算進cost function 裡，所以當update a, p時，頭尾對齊的cost 會比較小（因為整體的 || Xj - Yk ||會較小 )，即使這樣會讓outlier 變多，因為cost 不管outlier 的數量。解決辦法是跑兩次演算法，第1次只更新 {θ, t}，將結果當作第2次時 {θ, t}的起始值，並且將第二次時的β0 調大10倍，減少自由度以免a, p 跑太多。但這麼做的前題是兩個point ste 之間 a, p 差異不能太大，我這個case 機台位置不會差異太大，所以能用。
 |
| matching 前 |
 |
| matching 後 |
6.3 不只一組最佳解
如果缺點後剛好有一組以上的{θ, t, a, p} 可以完美matching，就可能發生錯誤。如下圖，紅色point set 往左或右平移兩個點都可以完美matching，那結果會隨機找到一組最佳解。所以point 分佈太簡單，太有規律的分佈，很可能會發生這種狀況，目前還沒想到解法。不過我的case 目前還沒發生這種極端情況。
Source Code
from __future__ import print_function
import os
import numpy as np
import random
from six.moves import xrange
import math
from matplotlib import pylab
import time
class Point_match:
def __init__(self):
self.theta = 0 #rotation angle
self.a = 0 #scaling parameter
self.p = 0 #projecting parameter
self.t = np.array([[0.0] , [300.0]]) #translation
self.degree_to_radian = 3.1415926 / 180
self.radian_to_degree = 180 / 3.1415926
self.gamma_0 = 30 #initial regularization hyper-parameter
self.beta_0 = 0.00009 # initial annealing hyper-parameter
self.beta_f = 0.1 # final annealing hyper-parameter
self.beta_r = 1.05 # annealing changing rate
self.ep0 = 0.01
self.ep1 = 0.01 # error threshold for point_match step D
self.ep2 = 0.005 # error threshold for point_match step B
self.Get_A_matrix = {'Affine': self.Affine,'DA_Da': self.DA_Da,'DA_Da_2': self.DA_Da_2}
def Affine (self,a,theta):
radians = theta * self.degree_to_radian
sa = np.array([[math.exp(a) , 0] , [ 0 , math.exp(a)]])
s_rotate = np.array([[math.cos(radians) , -math.sin(radians)] , [ math.sin(radians) , math.cos(radians)]])
return sa.dot(s_rotate)
def DA_Da (self,a,theta):
radians = theta * self.degree_to_radian
d_sa = np.array([[math.exp(a) , 0] , [ 0 , math.exp(a)]])
s_rotate = np.array([[math.cos(radians) , -math.sin(radians)] , [ math.sin(radians) , math.cos(radians)]])
return d_sa.dot(s_rotate)
def DA_Da_2 (self,a,theta):
radians = theta * self.degree_to_radian
d_sa_2 = np.array([[math.exp(a) , 0] , [ 0 , math.exp(a)]])
s_rotate = np.array([[math.cos(radians) , -math.sin(radians)] , [ math.sin(radians) , math.cos(radians)]])
return d_sa_2.dot(s_rotate)
def project (self,p,Y):
scale_low = 1e-4
if len(Y.shape) == 1:
assert np.amax(Y[0])*p*scale_low + 1. != 0, '1+p*Y 不能等於0'
fp = np.ndarray(Y.shape,np.float64)
for i in range (fp.shape[0]):
fp[i] = 1./(1.+p*Y[0]*scale_low)
elif len(Y.shape) == 2:
assert np.amax(Y[0,:])*p*scale_low + 1. != 0, '1+p*Y 不能等於0'
fp = np.ndarray(Y.shape,np.float64)
for i in range (fp.shape[0]):
fp[i,:] = 1./(1.+p*Y[0,:]*scale_low)
else:
print ('input Y not 1D or 2D array,return 1 !!')
return 1
return fp
def D_project_Dp (self,p,Y):
scale_low = 1e-4
if len(Y.shape) == 1:
assert np.amax(Y[0])*p*scale_low + 1. != 0, '1+p*Y 不能等於0'
fp = np.ndarray(Y.shape,np.float64)
for i in range (fp.shape[0]):
fp[i] = -Y[0]*scale_low/( (1+p*Y[0]*scale_low)**2 )
elif len(Y.shape) == 2:
assert np.amax(Y[0,:])*p*scale_low + 1 != 0, '1+p*Y 不能等於0'
fp = np.ndarray(Y.shape,np.float64)
for i in range (fp.shape[0]):
fp[i,:] = -Y[0,:]*scale_low/( (1+p*Y[0,:]*scale_low)**2 )
else:
print ('input Y not 1D or 2D array,return 1 !!')
return 1
return fp
def D_project_Dp_2 (self,p,Y):
scale_low = 1e-4
if len(Y.shape) == 1:
assert np.amax(Y[0])*p*scale_low + 1 != 0, '1+p*Y 不能等於0'
fp = np.ndarray(Y.shape,np.float64)
for i in range (fp.shape[0]):
fp[i] = 2*Y[0]*Y[0]*scale_low*scale_low/( (1+p*Y[0]*scale_low)**3 )
elif len(Y.shape) == 2:
assert np.amax(Y[0,:])*p*scale_low + 1 != 0, '1+p*Y 不能等於0'
fp = np.ndarray(Y.shape,np.float64)
for i in range (fp.shape[0]):
fp[i,:] = 2*Y[0,:]*Y[0,:]*scale_low*scale_low/( (1+p*Y[0,:]*scale_low)**3 )
else:
print ('input Y not 1D or 2D array,return 1 !!')
return 1
return fp
def Cost_function(self,X,Y,M,t,a,theta,p,gamma,arpha):
A = self.Get_A_matrix['Affine'](a,theta)
Y_change = self.project (p,Y)*A.dot(Y) + t
Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
X_i = np.ndarray((Y.shape[1],X.shape[1],X.shape[0]))
Y_k[:,:,:]=Y_change.T
X_i[:,:,:]=X.T
X_i = X_i.transpose(1,0,2)
diff_ik = np.linalg.norm( (X_i-Y_k),axis = 2 )**2
return np.sum(M*diff_ik) + gamma*(a**2 + p**2) - arpha * np.sum(M)
def Cost_function_da1(self,X,Y,M,t,a,theta,p,gamma,arpha):
A = self.Get_A_matrix['Affine'](a,theta)
dA = self.Get_A_matrix['DA_Da'](a,theta)
Y_change = self.project (p,Y)*A.dot(Y) + t
Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
X_i = np.ndarray((Y.shape[1],X.shape[1],X.shape[0]))
dA_Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
Y_k[:,:,:]=Y_change.T
dA_Y_k[:,:,:] = (self.project (p,Y)*dA.dot(Y)).T
X_i[:,:,:]=X.T
X_i = X_i.transpose(1,0,2)
diff_ik = np.sum( ( (X_i-Y_k)* dA_Y_k ),axis = 2 )
return -2*np.sum(M*diff_ik) + gamma*2*a
def Cost_function_da2(self,X,Y,M,t,a,theta,p,gamma,arpha):
A = self.Get_A_matrix['Affine'](a,theta)
dA = self.Get_A_matrix['DA_Da'](a,theta)
dA2 = self.Get_A_matrix['DA_Da_2'](a,theta)
Y_change = self.project (p,Y)*A.dot(Y) + t
Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
X_i = np.ndarray((Y.shape[1],X.shape[1],X.shape[0]))
dA_Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
dA2_Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
Y_k[:,:,:]=Y_change.T
dA_Y_k[:,:,:] = (self.project (p,Y)*dA.dot(Y)).T
dA2_Y_k[:,:,:] = (self.project (p,Y)*dA2.dot(Y)).T
X_i[:,:,:]=X.T
X_i = X_i.transpose(1,0,2)
diff_ik = np.sum( ( (X_i-Y_k)* dA2_Y_k - dA_Y_k**2 ),axis = 2 )
return -2*np.sum(M*diff_ik) + gamma*2
def Cost_function_dp1(self,X,Y,M,t,a,theta,p,gamma,arpha):
A = self.Get_A_matrix['Affine'](a,theta)
Y_change = self.project (p,Y)*A.dot(Y) + t
diff_ik = np.zeros(shape = [X.shape[1], Y.shape[1]])
Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
X_i = np.ndarray((Y.shape[1],X.shape[1],X.shape[0]))
dA_Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
Y_k[:,:,:]=Y_change.T
dA_Y_k[:,:,:] = (self.D_project_Dp (p,Y)*A.dot(Y)).T
X_i[:,:,:]=X.T
X_i = X_i.transpose(1,0,2)
diff_ik = np.sum( ( (X_i-Y_k)* dA_Y_k ),axis = 2 )
return -2*np.sum(M*diff_ik) + gamma*2*p
def Cost_function_dp2(self,X,Y,M,t,a,theta,p,gamma,arpha):
A = self.Get_A_matrix['Affine'](a,theta)
Y_change = self.project (p,Y)*A.dot(Y) + t
Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
X_i = np.ndarray((Y.shape[1],X.shape[1],X.shape[0]))
dA_Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
dA2_Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
Y_k[:,:,:]=Y_change.T
dA_Y_k[:,:,:] = (self.D_project_Dp (p,Y)*A.dot(Y)).T
dA2_Y_k[:,:,:] = (self.D_project_Dp_2 (p,Y)*A.dot(Y)).T
X_i[:,:,:]=X.T
X_i = X_i.transpose(1,0,2)
diff_ik = np.sum( ( (X_i-Y_k)* dA2_Y_k - dA_Y_k**2 ),axis = 2 )
return -2*np.sum(M*diff_ik) + gamma*2
def gradient_check_D1(self,X,Y,M,t,a,theta,p,gamma,arpha, epsilon = 1e-7):
num_parameters = 2
parameters_values = np.array([a , p], np.float64)
grad = np.zeros((num_parameters), np.float64)
J_plus = np.zeros((num_parameters), np.float64)
J_minus = np.zeros((num_parameters), np.float64)
gradapprox = np.zeros((num_parameters), np.float64)
grad[0] = self.Cost_function_da1(X,Y,M,t,a,theta,p,gamma,arpha)
grad[1] = self.Cost_function_dp1(X,Y,M,t,a,theta,p,gamma,arpha)
for i in range(num_parameters):
param_plus = np.copy(parameters_values)
print (param_plus)
param_plus[i] = param_plus[i] + epsilon
J_plus[i] = self.Cost_function(X,Y,M,t,param_plus[0] ,theta,param_plus[1],gamma,arpha)
param_minus = np.copy(parameters_values)
param_minus[i] = param_minus[i] - epsilon
J_minus[i] = self.Cost_function(X,Y,M,t,param_minus[0] ,theta,param_minus[1],gamma,arpha)
gradapprox[i] = (J_plus[i] - J_minus[i]) / (2*epsilon)
numerator = np.linalg.norm(grad - gradapprox) # Step 1'
denominator = np.linalg.norm(grad) + np.linalg.norm(gradapprox) # Step 2'
difference = numerator / denominator # Step 3'
print (grad)
print (gradapprox)
if difference > 2e-7:
print ("\033[93m" + "There is a mistake in first partial derivative! difference = " + str(difference) + "\033[0m")
else:
print ("\033[92m" + "First partial derivative works perfectly fine! difference = " + str(difference) + "\033[0m")
return difference
def gradient_check_D2(self,X,Y,M,t,a,theta,p,gamma,arpha, epsilon = 1e-7):
num_parameters = 2
parameters_values = np.array([a , p], np.float64)
grad = np.zeros((num_parameters), np.float64)
J_plus = np.zeros((num_parameters), np.float64)
J_minus = np.zeros((num_parameters), np.float64)
gradapprox = np.zeros((num_parameters), np.float64)
grad[0] = self.Cost_function_da2(X,Y,M,t,a,theta,p,gamma,arpha)
grad[1] = self.Cost_function_dp2(X,Y,M,t,a,theta,p,gamma,arpha)
J_plus[0] = self.Cost_function_da1(X,Y,M,t,a + epsilon,theta,p,gamma,arpha)
J_minus[0] = self.Cost_function_da1(X,Y,M,t,a - epsilon,theta,p,gamma,arpha)
J_plus[1] = self.Cost_function_dp1(X,Y,M,t,a,theta,p+ epsilon,gamma,arpha)
J_minus[1] = self.Cost_function_dp1(X,Y,M,t,a,theta,p- epsilon,gamma,arpha)
for i in range (num_parameters):
gradapprox[i] = (J_plus[i] - J_minus[i]) / (2*epsilon)
numerator = np.linalg.norm(grad - gradapprox) # Step 1'
denominator = np.linalg.norm(grad) + np.linalg.norm(gradapprox) # Step 2'
difference = numerator / denominator # Step 3'
print (grad)
print (gradapprox)
if difference > 2e-7:
print ("\033[93m" + "There is a mistake in second partial derivative! difference = " + str(difference) + "\033[0m")
else:
print ("\033[92m" + "Second partial derivative works perfectly fine! difference = " + str(difference) + "\033[0m")
return difference
def get_new_theta(self,X,Y,M,t,a,p):
A = self.Get_A_matrix['Affine'](a,0)
W = self.project (p,Y)*A.dot(Y)
W_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
X_i = np.ndarray((Y.shape[1],X.shape[1],X.shape[0]))
W_k[:,:,:]=W.T
X_i[:,:,:]=(X-t).T
X_i = X_i.transpose(1,0,2)
sin_ = np.sum( M*( X_i[:,:,1] * W_k[:,:,0] - X_i[:,:,0] * W_k[:,:,1] ) )
cos_ = np.sum( M*np.sum(X_i*W_k,axis=2))
theta = math.atan(sin_/(cos_ + 1e-7)) * self.radian_to_degree
return theta
def get_new_t(self,X,Y,M,a,theta,p):
A = self.Get_A_matrix['Affine'](a,theta)
Y_change = self.project (p,Y)*A.dot(Y)
Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
X_i = np.ndarray((Y.shape[1],X.shape[1],X.shape[0]))
M_ik = np.ndarray((X.shape[0],M.shape[0],M.shape[1]))
Y_k[:,:,:]=Y_change.T
X_i[:,:,:]=X.T
X_i = X_i.transpose(1,0,2)
M_ik[:,:,:] = M
M_ik = M_ik.transpose(1,2,0)
Diff = np.sum( ( M_ik * (X_i-Y_k) ),axis = 1 )
Diff = np.sum( ( Diff ),axis = 0 ).reshape((-1,1))
Diff = Diff / ( np.sum(M) + 1e-7 )
return Diff
def get_M_matrix(self,X,Y,t,a,theta,p,arpha,beta):
A = self.Get_A_matrix['Affine'](a,theta)
Y_change = self.project (p,Y)*A.dot(Y) + t
Y_k = np.ndarray((X.shape[1],Y.shape[1],Y.shape[0]))
X_i = np.ndarray((Y.shape[1],X.shape[1],X.shape[0]))
Y_k[:,:,:]=Y_change.T
X_i[:,:,:]=X.T
X_i = X_i.transpose(1,0,2)
M_matrix = np.exp( beta * ( arpha - np.linalg.norm( (X_i-Y_k),axis = 2 )**2 ) )
return M_matrix
def soft_assign (self,M_matrix,epsilon = 2e-2):
sl_M_matrix = np.insert(M_matrix,M_matrix.shape[1],1+epsilon,axis=1)
sl_M_matrix = np.insert(sl_M_matrix,M_matrix.shape[0],1+epsilon,axis=0)
sl_M_matrix_pre = np.copy(sl_M_matrix)
for i in range(30):
#print (sl_M_matrix)
sum_axis_0 = np.sum(sl_M_matrix,axis=0)
sum_axis_0[-1] = 1
sl_M_matrix = sl_M_matrix / ( sum_axis_0 + 1e-7 )
#print ( sl_M_matrix )
sum_axis_1 = np.reshape(np.sum(sl_M_matrix,axis=1), (-1, 1))
sum_axis_1[-1][0] = 1
sl_M_matrix = sl_M_matrix / ( sum_axis_1 + 1e-7 )
diff = np.sum( np.abs(sl_M_matrix_pre[0:-1,0:-1] - sl_M_matrix[0:-1,0:-1]))
if diff < epsilon :
break
sl_M_matrix_pre = sl_M_matrix
return sl_M_matrix[0:-1,0:-1]
def update_pose_Bynewton(self,X,Y,M,t,a,theta,p,gamma,arpha,mode = True):
u_theta = self.get_new_theta(X,Y,M,t,a,p)
u_t = self.get_new_t(X,Y,M,a,u_theta,p)
u_a = a
u_p = p
ax0 = 5
px0 = 0
count_a = 0
count_p = 0
if mode:
for i in range(50):
dv1 = self.Cost_function_da1(X,Y,M,u_t,ax0,u_theta,u_p,gamma,arpha)
dv2 = self.Cost_function_da2(X,Y,M,u_t,ax0,u_theta,u_p,gamma,arpha)
u_a = ax0 - dv1/(dv2+1e-5)
if ( abs(u_a) > 200 ):
u_a = 0
break
if ( abs((ax0 - u_a)/(u_a+1e-5) ) < 1e-4 ):
ax0 = u_a
break
ax0 = u_a
for i in range(50):
dv1 = self.Cost_function_dp1(X,Y,M,u_t,u_a,u_theta,px0,gamma,arpha)
dv2 = self.Cost_function_dp2(X,Y,M,u_t,u_a,u_theta,px0,gamma,arpha)
u_p = px0 - dv1/(dv2+1e-5)
if ( abs((px0 - u_p)/(u_p+1e-5) ) < 1e-4 ):
px0 = u_p
break
px0 = u_p
if (abs(u_p) > 0.2):
u_p = 0
return u_theta, u_t, u_a,u_p
def point_matching(self,X,Y,arpha, mode = True):
# X,Y : point set. Y will be matched to X
# arpha : outlier threshold
# mode: false when rigid transform only (no scaling and project), true when all transform
u_t0 = self.t
u_a0,u_theta0,u_p0 = self.a,self.theta,self.p
beta = self.beta_0
gamma = self.gamma_0
M = np.ndarray((X.shape[1],Y.shape[1]))
#count_while = 0
while (beta < self.beta_f): #stepA
#count_stepB = 0
count_inerror = 0
for i in range(100): # stepB
#stepC and stepD
M = self.soft_assign(self.get_M_matrix(X,Y,u_t0,u_a0,u_theta0,u_p0,arpha,beta), self.ep1)
#stepE
u_theta, u_t, u_a,u_p = self.update_pose_Bynewton(X,Y,M,u_t0,u_a0,u_theta0,u_p0,gamma,arpha,mode)
para_error_t = np.sum(abs(u_t0-u_t))
para_error =abs(u_a0 - u_a) + abs(u_theta0 - u_theta) + abs(u_p0 - u_p)
u_t0,u_a0,u_theta0,u_p0 = u_t,u_a,u_theta, u_p
#count_stepB = count_stepB + 1
if (para_error < self.ep2 and para_error_t < 1):
count_inerror = count_inerror + 1
if (count_inerror > 0):
break
beta = beta*self.beta_r
gamma = gamma*self.beta_r
#count_while = count_while+1
A = self.Get_A_matrix['Affine'](u_a0,u_theta0)
Y_ = (self.project (u_p0,Y)*A.dot(Y)) + u_t0
return Y_,M,u_t0,u_theta0,u_a0,u_p0 # Y_: Y point set after matching, M:matching matrix
def draw_XY_withM(X,Y,match_XtoY):
name_X = []
name_Y = []
for i in match_XtoY:
name_X.append(str(i+1))
for i in range(Y.shape[1]):
name_Y.append(str(i+1))
#print (name)
pylab.figure(figsize=(30,10)) #figsize=(width,height) by inch
pylab.ylim([0,3000])
pylab.xlim([0,4000])
for i, label in enumerate(name_X):
x,y=X[:,i]
pylab.scatter(x,y,color=['red']) #plot scatter point
pylab.annotate(label, xy=(x, y), xytext=(5, 2), textcoords='offset points',ha='right', va='bottom') #label on each point
for i, label in enumerate(name_Y):
x,y=Y[:,i]
pylab.scatter(x,y,color=['blue']) #plot scatter point
pylab.annotate(label, xy=(x, y), xytext=(5, 2), textcoords='offset points',ha='right', va='bottom') #label on each point
pylab.show()
def draw_XY(X,Y):
name_X = []
name_Y = []
for i in range(X.shape[1]):
name_X.append(str(i+1))
for i in range(Y.shape[1]):
name_Y.append(str(i+1))
#print (name)
pylab.figure(figsize=(30,10)) #figsize=(width,height) by inch
pylab.ylim([0,3000])
pylab.xlim([0,4000])
for i, label in enumerate(name_X):
x,y=X[:,i]
pylab.scatter(x,y,color=['red']) #plot scatter point
pylab.annotate(label, xy=(x, y), xytext=(5, 2), textcoords='offset points',ha='right', va='bottom') #label on each point
for i, label in enumerate(name_Y):
x,y=Y[:,i]
pylab.scatter(x,y,color=['blue']) #plot scatter point
pylab.annotate(label, xy=(x, y), xytext=(5, 2), textcoords='offset points',ha='right', va='bottom') #label on each point
pylab.show()
X = np.array([[ 325,332,362,492,542, 2872,2899,2926, 2952, 3007, 3034, 3061, 3087, 3145,
3172, 3199, 3225, 536, 602, 622, 687, 709, 775, 796, 863, 884, 951, 973,
1041, 1062, 1130, 1153, 1221, 1287, 1355, 1378, 1448, 1470, 1540, 1562, 1632, 1654,
1724, 1748, 1818, 1841, 1911, 1934, 2004, 2070, 2141, 2164, 2235, 2258, 2327, 2350,
2419, 2443, 2513, 2536, 2605, 2627, 2697, 2719, 2789, 654, 2873, 2899, 2928, 2954,
3010, 3036, 3064, 3090, 3148, 3174, 3202, 3228],
[ 279, 291, 318, 327, 330, 363, 364, 365, 367, 367, 368, 369, 371, 373,
374, 376, 377, 401, 397, 398, 394, 395, 392, 392, 389, 390, 387, 388,
385, 385, 383, 384, 382, 382, 380, 380, 379, 379, 378, 378, 377, 378,
376, 377, 376, 377, 376, 377, 376, 378, 376, 378, 378, 380, 378, 380,
380, 381, 381, 384, 383, 384, 385, 388, 387, 572, 573, 573, 574, 575,
576, 577, 577, 579, 581, 581, 581, 584]])
Y = np.array([[ 773, 840, 861, 927, 948, 1015, 1036, 1102, 1123, 1194, 1215, 1281, 1302, 1373,
1394, 1463, 1527, 1598, 1619, 1690, 1711, 1781, 1804, 1873, 1896, 1965, 1990, 2056,
2081, 2150, 2173, 2244, 2311, 2379, 2402, 2469, 2494, 2563, 2586, 2654, 2677, 2744,
2769, 2838, 2856, 2925, 2950, 3017, 3098, 3125, 3150, 3177, 3231, 3254, 3283, 3306,
3365, 3392, 3417, 3444, 3098, 3125, 3152, 3179, 3234, 3256, 3286, 3308, 3369, 3394,
3421, 3446],
[ 462, 459, 459, 456, 456, 453, 453, 453, 453, 453, 453, 450, 450, 450,
450, 450, 450, 447, 450, 447, 450, 447, 450, 447, 450, 447, 450, 450,
450, 450, 450, 450, 453, 453, 456, 456, 456, 459, 459, 462, 462, 462,
464, 464, 467, 467, 470, 470, 445, 445, 450, 450, 450, 450, 456, 456,
459, 462, 462, 462, 656, 656, 656, 656, 659, 659, 659, 662, 662, 664,
664, 667,]])
draw_XY(X,Y)
arpha = 200
PM = Point_match()
Y_,M,u_t,u_theta, u_a,u_p = PM.point_matching(X,Y,arpha,mode = True)
match_YtoX = np.argmax(np.insert(M>0.6,0,0,axis=0),axis=0 )-1
match_XtoY = np.argmax(np.insert(M>0.6,0,0,axis=1),axis=1 )-1
draw_XY_withM(X,Y_,match_XtoY)
P_diff = X[:,match_YtoX[match_YtoX>=0]] - Y_[:,match_YtoX>=0]
print ('Point lose number = %d'%(Y.shape[1] - P_diff.shape[1]))
print ('Point mathcing number = %d'%(P_diff.shape[1]))
print ('point matching difference = %f' %(np.linalg.norm( P_diff )) )
